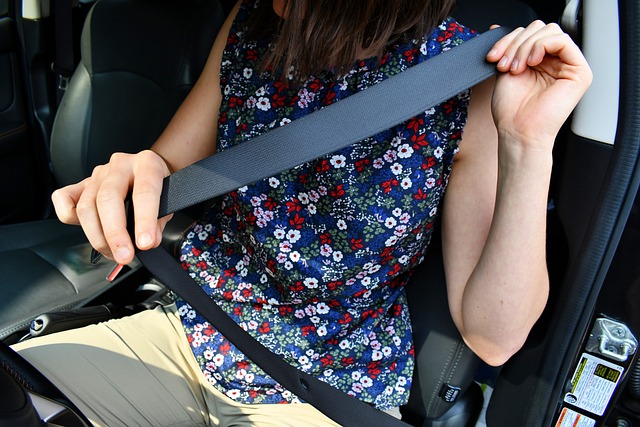

Car seat belts are crucial safety devices. Their performance depends heavily on the quality of the materials used. Let’s explore the innovative process for creating high-performance polyester monofilaments designed specifically for car seat belts.
1. What Makes Car Seat Belts Unique?
Car seat belts serve both functional and decorative purposes, so their materials must meet several criteria:
Dimensions: Typically 48 mm wide and 1.1–1.2 mm thick.
Performance Requirements:
- High tensile strength to withstand pulling forces.
- Low plastic deformation for quick recovery after stretching.
- Moderate elongation to ensure comfort.
- Stable shrinkage rates to maintain shape and size.
Premium Features: Softness, comfort, lightweight, flame resistance, and wear resistance.
2. Current Market Gap
High-end seat belts use polyester filaments for the warp (lengthwise threads) and polyester monofilaments for the weft (crosswise threads). However, suitable polyester monofilaments for premium seat belts are scarce.
3. Production Methods for Polyester Monofilaments
Polyester monofilaments are usually made using one of two methods:
One-Step Process: The entire production—spinning, stretching, and heat-setting—occurs on one machine using spinnerets with 8, 10, or 12 holes.
Two-Step Process:
High-speed spinning creates partially oriented yarn (POY) at 3,000–6,000 m/min.
Stretching and twisting stabilize the filament’s molecular orientation.
The stretching and twisting steps increase the monofilament’s orientation and crystallization, enhancing strength and stability.
4. Developing Innovative Polyester Monofilaments
To meet the requirements of high-end seat belts, a new type of polyester monofilament has been developed. Its benefits include:
- High strength and stable shrinkage.
- Exceptional flame resistance and wear resistance.
4.1 Raw Material Composition
Base Material: Polyester chips.
Additives:
Wear-resistant masterbatch: Made with polytetrafluoroethylene (PTFE), which forms a thin film on the filament’s surface to reduce friction and improve wear resistance. Adding PTFE also enhances tensile and bending strength while slightly reducing elongation.
Flame-retardant chips: Phosphorus-based polyester (22000-44000ppm) increases the limiting oxygen index (LOI) from 26% to 30%–34.5%.
Performance Improvements
- Tensile strength: Increased by 2–2.4 times.
- Bending strength: Increased by 1.9–2.2 times.
- Flame resistance: Significantly improved, meeting strict seat belt standards.
4.2 Stretching Techniques
A combination of hot-water and hot-air stretching ensures precise temperature control:
- Too hot: Weakens the filament by causing molecular slippage.
- Too cold: Prevents the formation of stable crystals, leading to breakage.
This controlled process improves orientation, crystallization, and size stability while reducing breakage.
5. Production Steps and Results
5.1 Process Overview
- Raw Material Preparation: Mix functional masterbatch/chips with polyester chips at a 1:10 ratio and dry them.
- Melt Spinning: Extrude molten polyester through spinnerets to form fibers.
- Stretching: First in hot water, then in hot air.
- Shaping, Oiling, and Winding: Finalize the monofilament with high performance.
5.2 Performance Data (Average values across six batches):
- Diameter: 0.20 mm.
- Density: 43.33 Tex.
- Breaking force: 22.4 N.
- Breaking strength: 51.7 CN/Tex.
- Breaking elongation: 23%.
- Elongation under load: 12%.
- Initial modulus: 392 CN/Tex.
6. Why It Matters
This innovative monofilament achieves outstanding strength, wear resistance, and flame retardancy, making it ideal for high-end car seat belts.
Key Benefits:
- Enhanced safety to meet premium market demands.
- Improved durability and environmental performance.
By addressing current material shortages, this development sets a new standard for seat belt manufacturing and automotive safety.
